| Item |
Ratings |
Remarks |

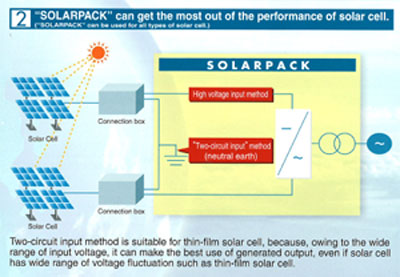

| Input method |
Single -circuit |
Two –Circuit |
|
| Type |
SPM100-CS1 |
SPM100-CS2 |
|
| DC Input Voltage |
Input Voltage range |
DC0-600V |
DC0-±440V |
|
| |
Rated Voltage |
DC400V |
DC±300V |
|
| |
Input voltage range of operation |
DC320-600V |
DC±210-±375V |
MPPT range |
| Efficiency |
94.5% |
95.0% |
At the rated output (including isolation transformer) |
| Output capacity |
100kW |
|
| Insulation Method |
Commercial frequency insulation |
|
| |
No. of Phase |
Three Phase , Three wire |
|
| AC Output |
Rated Voltage Frequency |
202V 50 or 60 Hz |
|
| Mass |
1,100kg |
|

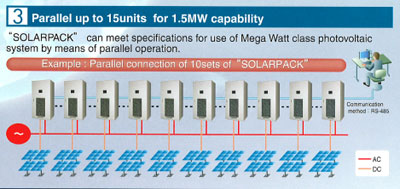

| Communication method |
RS-485 |
| Other |
Ambient Temperature |
-10 to 40C (For range from 40 to 45 degree C The output will be limited to 80% of the rated output) |
| |
Service |
Indoor |
