Beenew's double layer forming machine has more than 20 years of technology accumulation. Customers in more than 50 countries are using our machines. Advanced technology and stable machines are the evaluation and recognition of our machines by customers.
Parameter
| Item |
Parameters |
| Material Thickness |
0.18-0.47mm |
| Driving Motor |
7.5kw |
| Forming Station |
18 |
| Forming Station |
45# steel |
| Shaft Diameter |
70mm |
| Shaft Material |
45# steel |
| Hydraulic Station Power |
3.0kw |
| Control System |
PLC |
Feature and Application
We customize machines according to your needs. Whether you need to produce roof tiles, wall tiles, or corrugated roofing sheets, our machines can meet your requirements. Common metal roof panels, wall panels, trapezoidal roof sheets, etc. on the market can be produced on the same roll forming machine. With a double-layer design, the upper and lower layers can produce different sizes of metal tile.
However, it should be noted that cannot be produced two size of roof panel at the same time, because the control system of a machine is the same. The double-layer design is used to save space in the production site. If your production workshop is large enough, we still recommend that one machine produce one size of template.

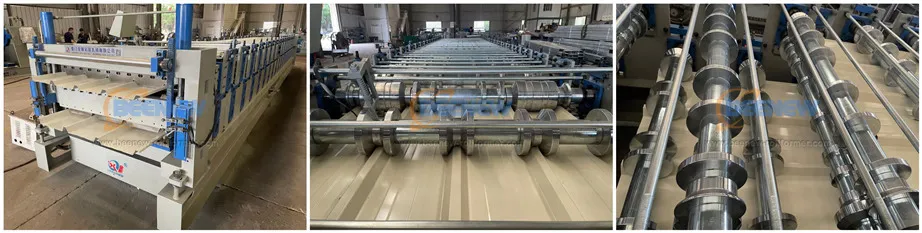

Detials
Beenew double layer roll forming machine,Cutting tool material is Cr12, Heat treatment, Cut-to-length tolerance≤±2 mm. Welcome to contact our team of experts to customize the roll forming machine you need.
