Parameter Description
| Items |
Parameter |
| Aluminum Sheet Thickness |
0.7-1.5mm |
| Forming Steps |
14steps |
| RollerMaterial |
45# steel, coated with chrome |
| Driving Motor |
5.5KW |
| Hydraulic Cutting Power |
2.2KW |
| Material Width |
125mm |
| Power Supply |
380V/50HZ/3Ph (can be specified by user) |
| Cutting Type |
Hydraulic cutting, no slug cutting |
| Tolerance |
±1.5mm |
| MaterialofCutting Tool |
Cr12 |
| Control System |
PLC with touch screen |
| Machine Dimension |
5920*1250*1350mm |
| Machine Net Weight |
|
Machine Features
The roller shutter door making machine line consists of several key components, including an uncoiler, feeding part, main roll forming system, hydraulic cutting system, and product receiving table, all working together to produce high-quality roller shutter doors.
Machine Key Specifications
Forming Mold: Made from GCr15 molding steel, vacuum quenched to HRC60-62°, and precision-machined with a CNC lathe for high accuracy.
Shaft Material: Constructed from 40Cr steel, processed with CNC lathes, heat-treated, and coated with a 0.04mm hard chrome layer, providing durability and rust prevention.
Driving Mechanism: Features a main motor combined with a chain sprocket drive and approximately 14 forming steps.
Main Motor: 5.5KW with frequency speed control for optimized performance.
Control System: PLC-controlled for precise cutting length, piece count, and adjustable machine line speed.

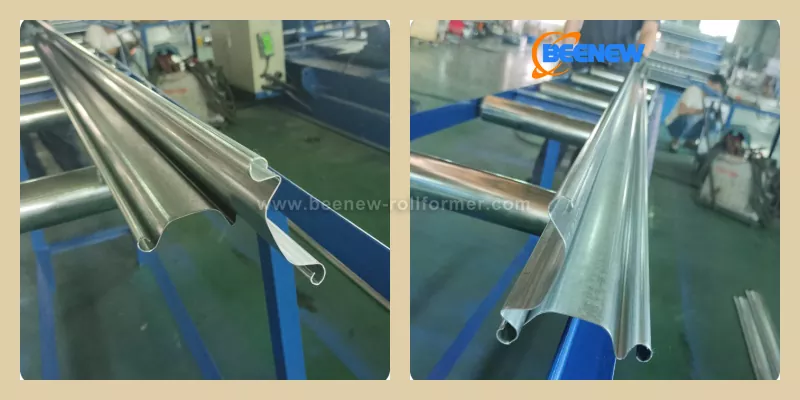

This roller shutter door making machine is special manufactured for producing rolling shutter doors for industrial plants, warehouses, supermarkets, and shopping malls. Xiamen Beenew Machinery has 27 years experience on kinds of roll forming machines for different industries, we are focus on providing long-lasting and reliable roll forming production line as buyer needs.
